Highly degraded IQ when exporting from FCP

[J_Gasper]

[J_Gasper]

Active member
Hey guys,

Lately I have been noticing that when exporting from FCP 7, the resolution of my shots look like shit when uploaded to Vimeo. They do look a bit better on the NS uploader though... Anyway, I have been following Vimeo's compression guidelines and such and nothing for the better has happened. When I turn HD off, there is no difference then when HD is on. The weird thing is that people say their image looks a little worse in the editor vs online. Which is the complete opposite from me.

Info: Shoot with Canon t3i at 720p and export in 720p

+K for help

Also, sorry for sounding like that bitch that only cares about the resolution of their footy. Its not a huge deal, Its just been annoying me a ton lately.


Are you editing in the correct resolution, like are your sequence settings correct?

are you transcoding to prores after you export? or before you start working on your project? because you should be exporting to a codec like h.264 and editing in something like prores 422 (lt)

also what ive been doing lately, seems to work well, is just export the file straight from fcp to compressor and use the "youtube sharing" template from the drop down. its settings are the same as vimeo's as far as the right codec and approximate size while still maintaining your image quality

^yep. Been editing in pro res 422 LT. And export in h.264. Gonna try using compressor with my next edit. Lets hope that does the trickl

Personally, I think compressor's presets are awful.

Export as a quicktime movie (no compression). Then open in QT Pro and compress it there at around 7000 kbps.

vimeo compression says you should have no higher than 5000 kbps. i capped mine at 5000 as a test and it came out looking super pixilated

That's because they'd rather have you uploading smaller files, rather than take advantage of being able to upload large ones and take up more space on their servers.

7000 is the lowest I go. Sometimes I do 8500.

yeah i always take the preset and then i usually keep my video in its source size, so if its 1080p i don't drop it to 720 and then i cap mine around 10500kbps or as high as i can until i get close to about a 400mb video. then just stick to uploading once a week and seems to work ok so far

Landis I tried your method of exporting, and it seems to work a little bit better. But my image is still looking a little fuzzy when looking at the video on the vimeo page. Its different when its embedded though.

password: canon


forgot to mention. this is also in 1080p and i dont see really much of a difference from this and 720p. exported from QT pro at 7000kps, h.264, 24p

Motion looks weird...how are you slowing down the footage?

That's odd because many of my videos are 7500 - 8500 kbps and the compression looks much better. Also, you should be exporting in 23.98fps, not 24fps.

that footage was shot in 30p and didnt slow it down at all. Anything else it could be? I have contacted vimeo about it and they are completely stumped.

Wait, so you're shooting 30p in a 29.97 timeline, then exporting 24 fps? That will create a slew of ghosting problems...

yeah if you shoot in 30fps you should export in 30fps. (29.97) thats probably why you are getting a little bit fuzzy image quality, the computer is trying to line up the video and will put things in or take little things out in order to compensate. then you get image quality problems

I just went on in way more detail about by own problems with sequence settings, but double-check them before you do anything else. They can do terrible, terrible things to your video if you're not careful.

just did re uploaded a new one to vimeo with a frame rate of 29.97 and it does not look any different unfortunately.

also, anything I should be looking out for in sequence settings? my video is completely fine inside the editor, so I dont think its that.

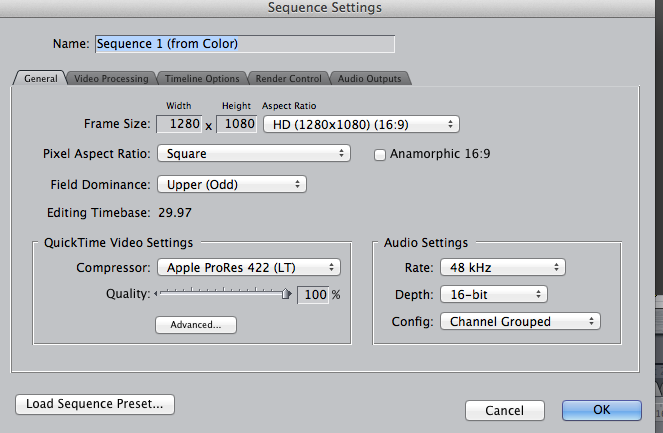

hmm. went to my sequence settings and I was on HDTV 1080i 16:9 and when I change it to HD 1280x1080 i get this weird sized footage. weird. also should my pixel aspect ratio be square?

+K to everyone

thats probably it. if your in final cut you should be able to start with an empty timeline and drop in your clips and it should ask if you want to match the sequence settings with the clip settings. that way you should have everything lined up. but i don't remember if you use FCP

and yes pixels should be square


Haha bunk settings, man.

If you're shooting 30p, your sequence settings should be:

1920x1080

29.97fps

square pixels

Should i be on HDTV 1080i or HD 1920x1080? Its progressive footage so i dont know why 1080i is the preset. Also, when i change it to HD 1920x1080 i get a nasty looking footage.

To be honest- i don't know. I just know that you're supposed to have matching settings so that everything "fits" so as to avoid what results in something only a nerd could concisely explain.

1080i is the preset because FCP was made back when DV codecs were the standard. I don't know which version you're running, but when i used FCP 6 it always reverted to interlaced timelines. When you get nasty footage, are you copy/pasting it from the 1080i timeline into the 1080p timeline? Because a clip is optimized (not sure if that's the right word) once it's placed in a timeline. So if you are copying it over, you have a 30p clip conformed to 60i conformed to 30p. On a side note, digital progressive frame rates aren't integer-value, so 24p is acttually 23.98; 30p is 39.97.? Integrr-value framerates in post are only used if you're transferring to film. So, your sequence settings (assuming you want to output 30p, which I don't recommend), should be 1920x1080, 29.97 fps, square pixels. Make sure export with these identical settings, with the compression affecting bitrate rather than the aforementioned settings.

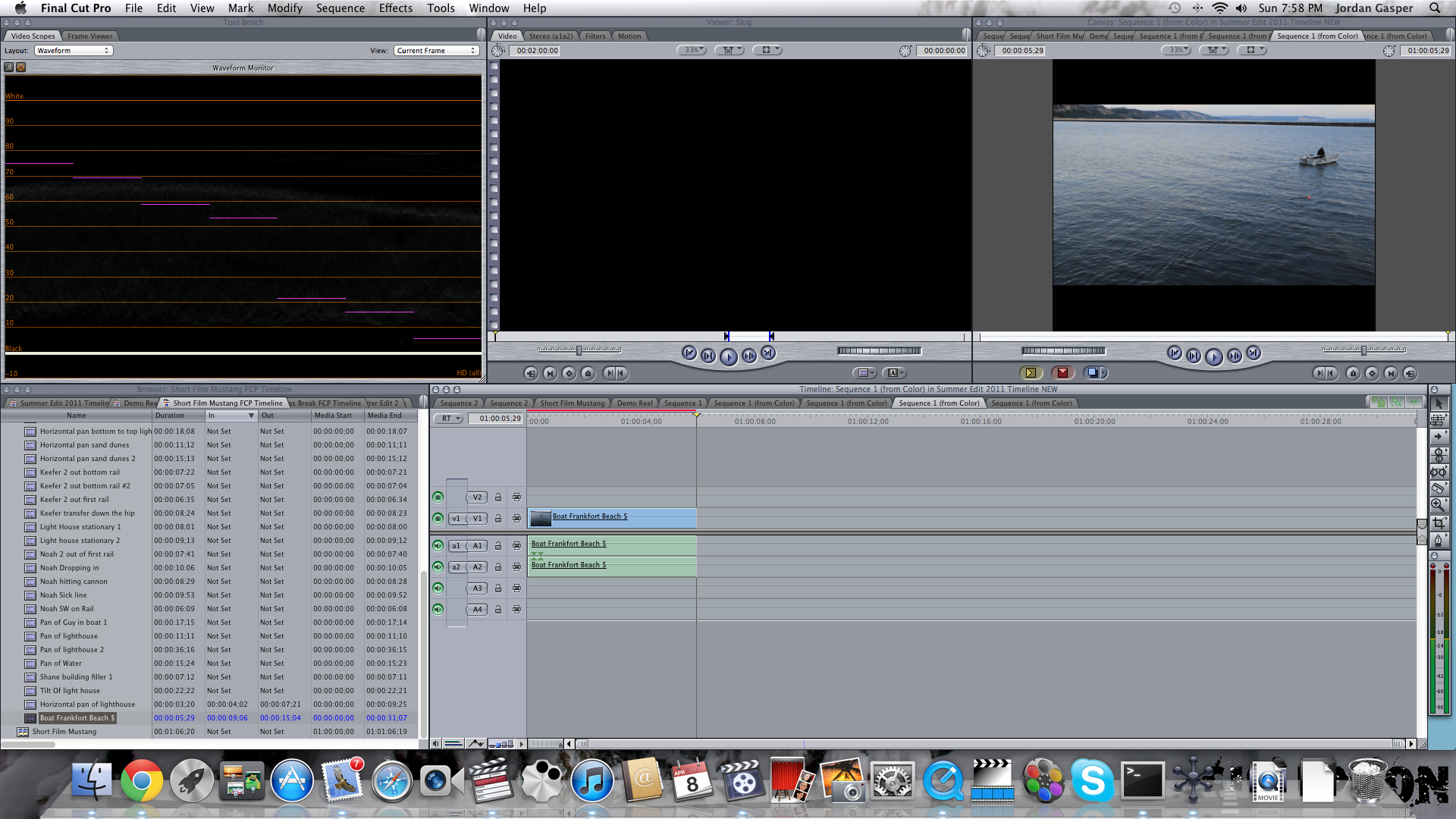

Heres a screenshot. Look at the canvas. The only thing I had wrong in sequence settings was the resolution. When I switch it over to HD 1280x1080 (16:9) I get this image. Earlier, I was getting something like zoomed in and cropped.

View attachment 453930

if embed didnt work. heres link.https://www.newschoolers.com/memberphoto/453930.0/For-thread-?s=126808&o=8

When I click and drag a clip into my new timeline, it asked me if I wanted to make my sequence settings match the clip, and if I said yes, it would end up putting me back at that stupid interlaced shit.


hmm...well i just looked at my sequence settings of the vid i just did with my 60D and mine is actually 1080i... i am ok with the quality of the video after i exported it cuz i wasnt using the best lens. but makes me think that its how you exported and compressed your video and not your sequence settings. you gotta remember too that only viewing the clips in the canvas area and not on any bigger monitor while editing, everything will look better because its 1080 resolution but crammed down into that little box

yeah im not sure if it is my sequence settings. im going wrong somewhere while exporting. Also, I know sometimes there is a little bit of quality loss when being compressed, but I cant tell a difference from HD and SD. The image looks a million times better in the editor, its not even a comparison. And to be fair, the screen on vimeo and the viewing screen on FCP arent TO different in size.

Workflow in FCP? Or in general? Once the shots are on my computer, i transcode them to pro res 422 LT. Then inport into FCP and basically just start editing away. Typically i just export directly from FCP using vimeos guidelines. A few weeks ago, i tried a ton of different ways to export, and still nothing better. Oh yeah and if it helps, once uploaded to vimeo, my shots get .25-.5 of a second off sync with the audio. Vimeo has no idea on that problem either...

i didn't read anything so this might have already been answered, but 1280 by 1080 isn't hd?

1280 by 720 or 1920 by 1080 is hd

hmm thats weird. ive never really had any problems with audio not syncing or anything like that. im kinda stumped too. what do you transcode with?

Transcode with MPEG stream clip. And mike, thats what i thought to, but look at that screen shot above. Thats where it says 1280x1080

alrighttt this might have nothing to do with anything but i noticed your transcoding in MPEG to apple pro res 422 LT right? ... well try just "pro res 422" not LT. i've never used LT no idea what it is but ive also never had a problem exporting so maybe give that a go?

well i use prores422 LT for my dslr footage because you don't really need anything higher for it. i never have had problems with mine so far

Dude, what I'm trying to tell you is that the label 1280x1080 HD (16:9) is WRONG. That is not 16:9 unless you're using some form of DVC codec that stretches an interlaced image to 16:9.

Forget those presets. Make a new sequence altogether. Go to custom, type in 1920x1080, 29.97, square pixels, field dominance: none, ProRes 422 LT. Take a virgin clip out of browser and drop it in.

LT stands for "light." Anything higher than ProRes 422 LT will damage your footage by creating too much headroom in the color space, which makes your 8-bit footage more susceptible to banding.

when i shoot in 720/60p i always edit in a 23.97 timeline and export in 23.97 and it works fine for me. i am using premiere which might work differently but i have had no problems doing this.
